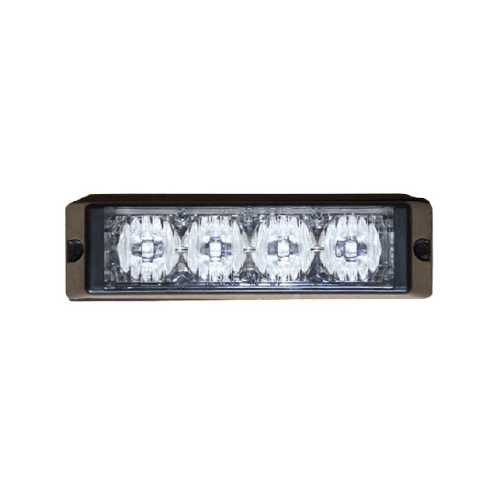

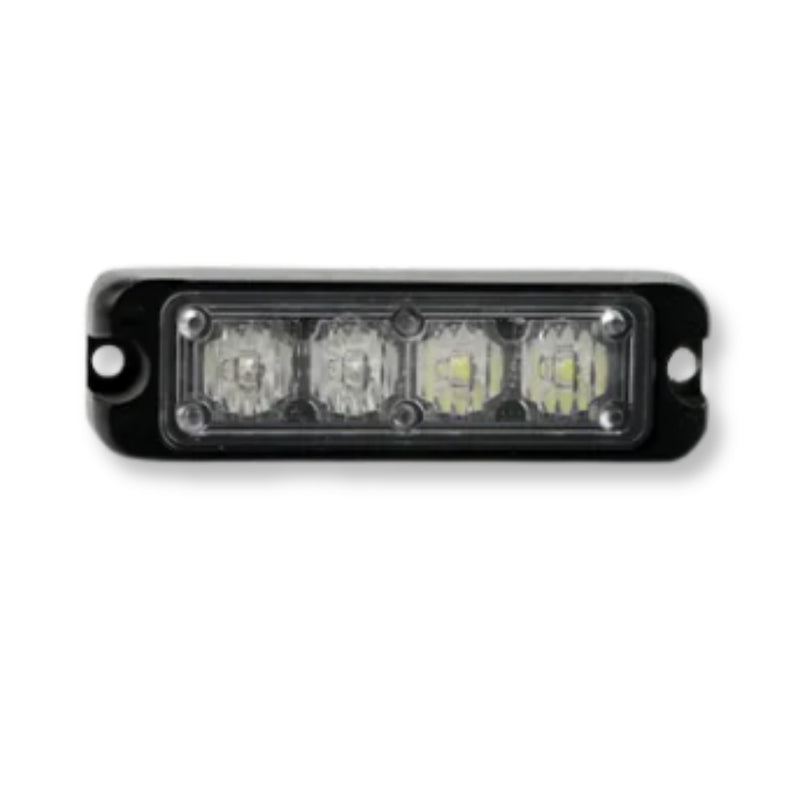

12v 4 Led Self Flashing Module Red Bing Light

This Alloy 4 led strobe light is one of the brightest and most powerful of our strobe lights  It certainly Commands full attention in any emergency or civil situation.

SPECIFICATIONS:

INPUT VOLTAGE - 12v-24v

RED - To + VCD (fuse @3A)

BLACK - To Chassis Ground

YELLOW - Synchronization/Pattern Selector - Connect YELLOW wires of all heads together for synchronization momentarily apply YELLOW wire to RED for one second to change pattern

WHITE & GREY - Alternating patternate - To make light heads alternate, connect the grey of the even number of heads to the White wire of the odd number of heads.

-To select flash pattern, apply Yellow to Red wire, less than 1 second for next pattern.

-To make light heads alternate, connect the Grey wire of the even number of heads to the White wire of the odd number of heads.

-To make light heads sync, connect Yellow wires of all light heads together. Before connecting Yellow wires, Light heads must be on the same pattern.

Light heads will not sync if they are on different patterns.

FLASH PATTERNS:

• 1 - Random
• 2 - Single-Split
• 3 - Double - Spilt
• 4 - Quad - Split
• 5 - Pulse - Split
• 6 - Accelerator - Split
• 7 - Quad Burst - Split
• 8 - Double / Accelerator - Split
• 9 - Quad / Accelerator - Split
• 10 - Single - All
• 11 - Double - All
• 12 - Quad - All
• 13 - Accelerator - All
• 14 - Quad/Single - All
• 15 - Pulse/Single - All
• 16 - Half steady - 1
• 17 - Half steady - 2
• 18 - Off
• 19 - All on

Package Includes:

1 x 4 Led Strobe Light  / Flashing Red
