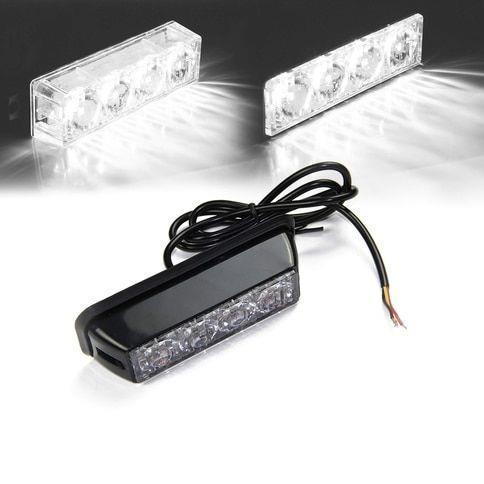

12-24v 4 LED Flashing Module White KM202-4 Bing Light

This Alloy 4 led strobe light is one of the brightest and most powerful of our strobe lights  It certainly Commands full attention in any emergency or civil situation.

SPECIFICATIONS:

INPUT VOLTAGE - 12v-24v

RED - To + VCD (fuse @3A)

BLACK - To Chassis Ground

YELLOW - Synchronization/Pattern Selector - Connect YELLOW wires of all heads together for synchronization momentarily apply YELLOW wire to RED for one second to change pattern

WHITE & GREY - Alternating patternate - To make light heads alternate, connect the grey of the even number of heads to the White wire of the odd number of heads.

-To select flash pattern, apply Yellow to Red wire, less than 1 second for next pattern.

-To make light heads alternate, connect the Grey wire of the even number of heads to the White wire of the odd number of heads.

-To make light heads sync, connect Yellow wires of all light heads together. Before connecting Yellow wires, Light heads must be on the same pattern.

FLASH PATTERNS:

• 1 - Random
• 2 - Single-Split
• 3 - Double - Spilt
• 4 - Quad - Split
• 5 - Pulse - Split
• 6 - Accelerator - Split
• 7 - Quad Burst - Split
• 8 - Double / Accelerator - Split
• 9 - Quad / Accelerator - Split
• 10 - Single - All
• 11 - Double - All
• 12 - Quad - All
• 13 - Accelerator - All
• 14 - Quad/Single - All
• 15 - Pulse/Single - All
• 16 - Half steady - 1
• 17 - Half steady - 2
• 18 - All On
• 19 - Off

Package Includes:

1 x 4 Led Strobe Light  / Flashing white  KM202
