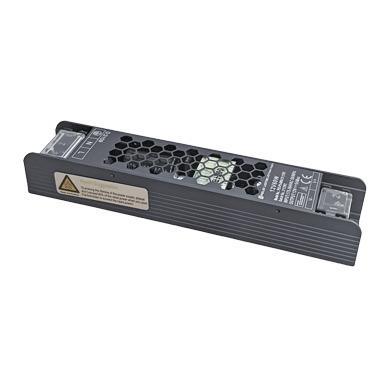

12V 5A 60W Slim Cage Power Supply IP20 PS003

12V 5A 60W Slim Cage Power Supply

This slim caged power supply is designed to allow air to freely pass through so that it can be run for longer periods of time. It is important that the power supply be installed in a well ventilated area so that any heat that has been generated from operation will be dispersed by air flow (convection) & will prevent overheating of the device.

Features :

• 4 output Dimming levels controlled with dip switches. When adjusting the different levels please ensure that the power supply is off.
• Has a "Soothing" function will cause a gradual increase in output voltage when turned on, and allow safe start ups to high output loads. This function is is disabled as default but can be turned on by turning on the labelled switch.
• Dual AC inputs allow for easy looping (sharing of power to multiple power supplies).
• Slim & Narrow design

Specifications:

• Input Voltage: 175~264VAC 50/60Hz
• Output Voltage: 12VDC
• Amperage: 5A
• Maximum output power: 60W
• Number of inputs : 2
• IP Rating: IP20
• Dimensions : L170mmxW34mmxH23mm
• Please note that the power supply has an IP20 rating and should only be installed INDOORS
• It's also recommended to never max out your output load, 80% of capacity being the recommended maximum.
